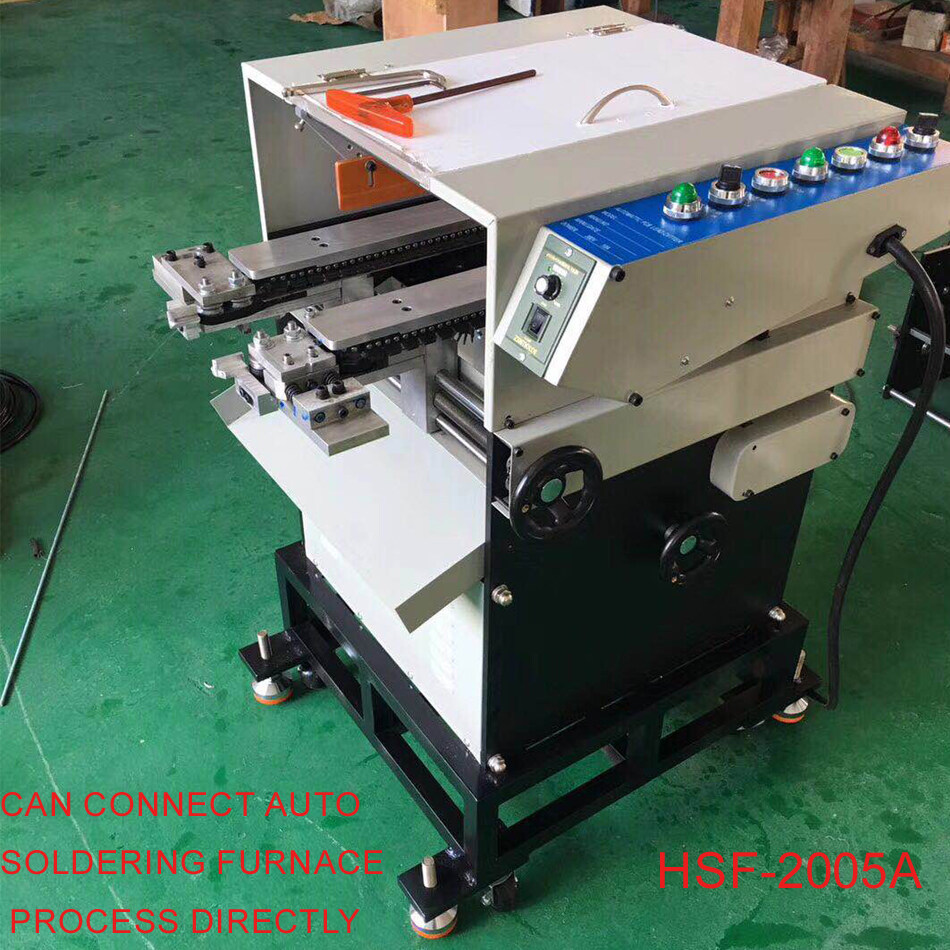

MM00052 HSF-2005A Automatic PCB Board Pin Cutting Machine Single Knife Type PCB Foot Cutter

Specification:

Power: 110v/220v AC. 60/50Hz
Weight: about 135kg
Adopts claw-type spring lamination fixtures, automatic push, high stability, the production line and automatic soldering furnace can be connected
PC board feed cuts the pin, orbital velocity can be adjusted to the thickness of parts pin, which increase operation life of knife.
Claw-type track can clamp PC board, and push from the back to the front with strong and stable strength.
It is accompanied by the pricking ball and Bakelite tab letting which can overcome the deformation of the PC board after soldering.
Maximum cutting PC board size:500*250mm, more need to customize.
HSF-2005A, this machine is the upgated version of HSF-2005 model with a wave soldering device installed. It is a custom-made model, customized according to the customer's wave soldering height and interface shape.
PS: The price is just for reference, the final price will depend on the final mold design

$3999.00

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design

Attention:

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way
