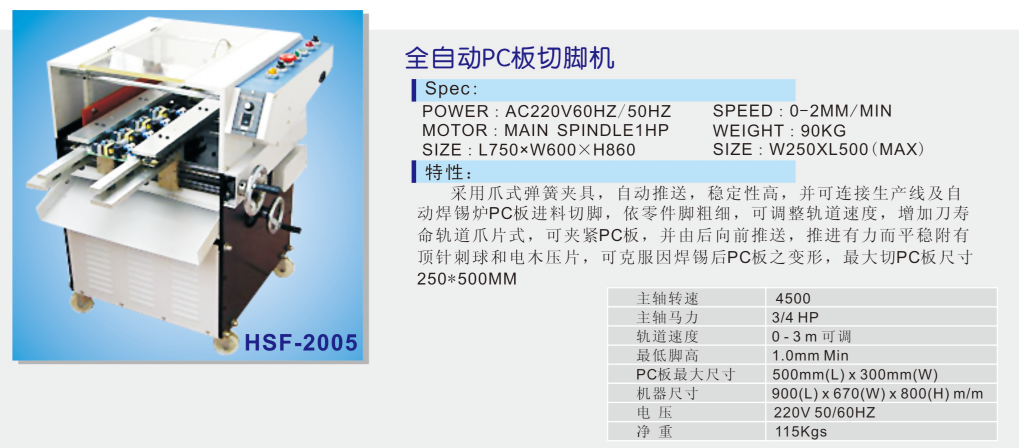

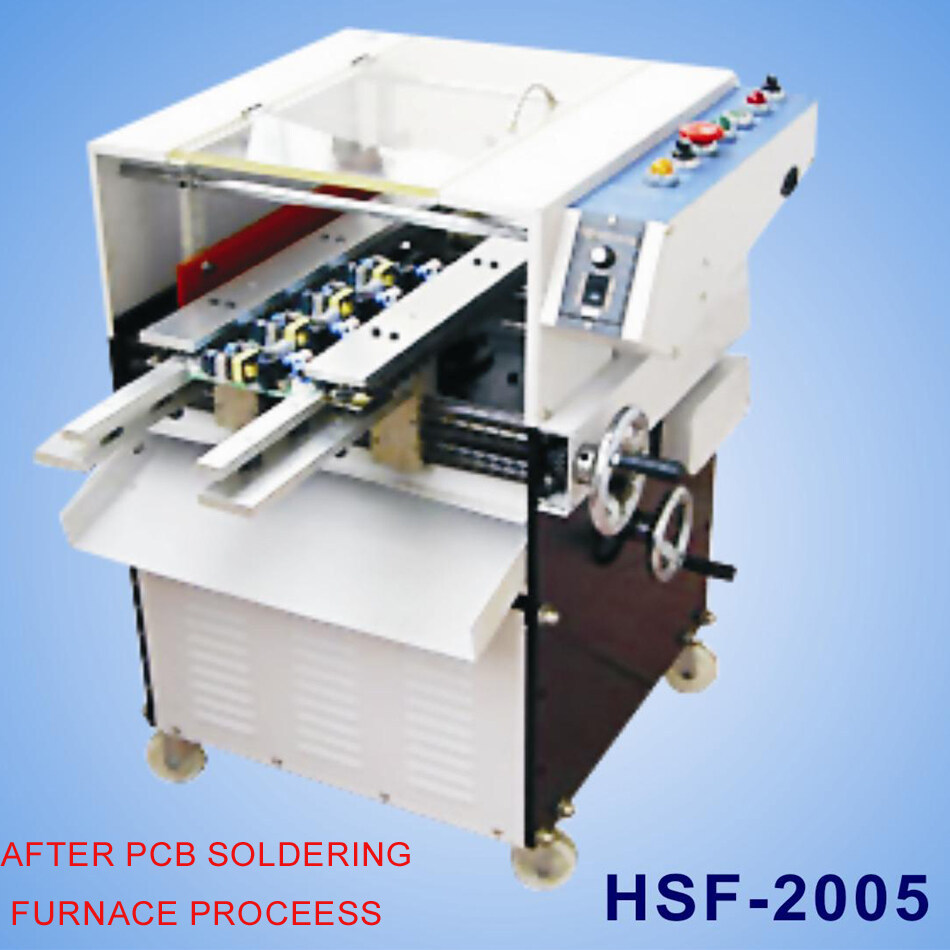

MM00051 HSF-2005 Automatic PCB Board Pin Cutting Cutter Machine Single Knife Type

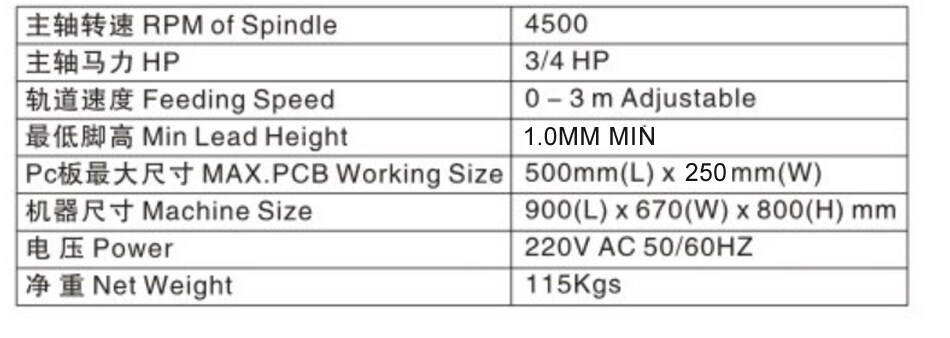

Specification:

• Power: 110v/220v AC. 60/50Hz
• Size: L900*W670*H 800mm
• Weight: about 115kg
• Adopts claw-type spring lamination fixtures, automatic push, high stability, the production line and automatic soldering furnace can be connected
• PC board feed cuts the pin, orbital velocity can be adjusted to the thickness of parts pin, which increase operation life of knife.
• Claw-type track can clamp PC board, and push from the back to the front with strong and stable strength.
• It is accompanied by the pricking ball and Bakelite tab letting which can overcome the deformation of the PC board after soldering.
• Maximum cutting PC board size:500*250mm, more need to customize.
• HSF-2005 is used for cutting the legs of circuit boards after wave soldering. The machine quotation generally does not include the cutter, so a separate quotation is required. There are imported tungsten steel knives and domestic tungsten steel knives for choice. Since the maximum size of the cutter is 250MM and the machine is a single-blade type, the widest circuit board can only cut a width of less than 250MM. If it exceeds, a manual double-blade type needs to be customized.

• HSF-2005A is the upgated version of HSF-2005 model with a wave soldering device installed. It is a custom-made model, customized according to the customer's wave soldering height and interface shape.
• PS: The price is just for reference, the final price will depend on the final mold design
