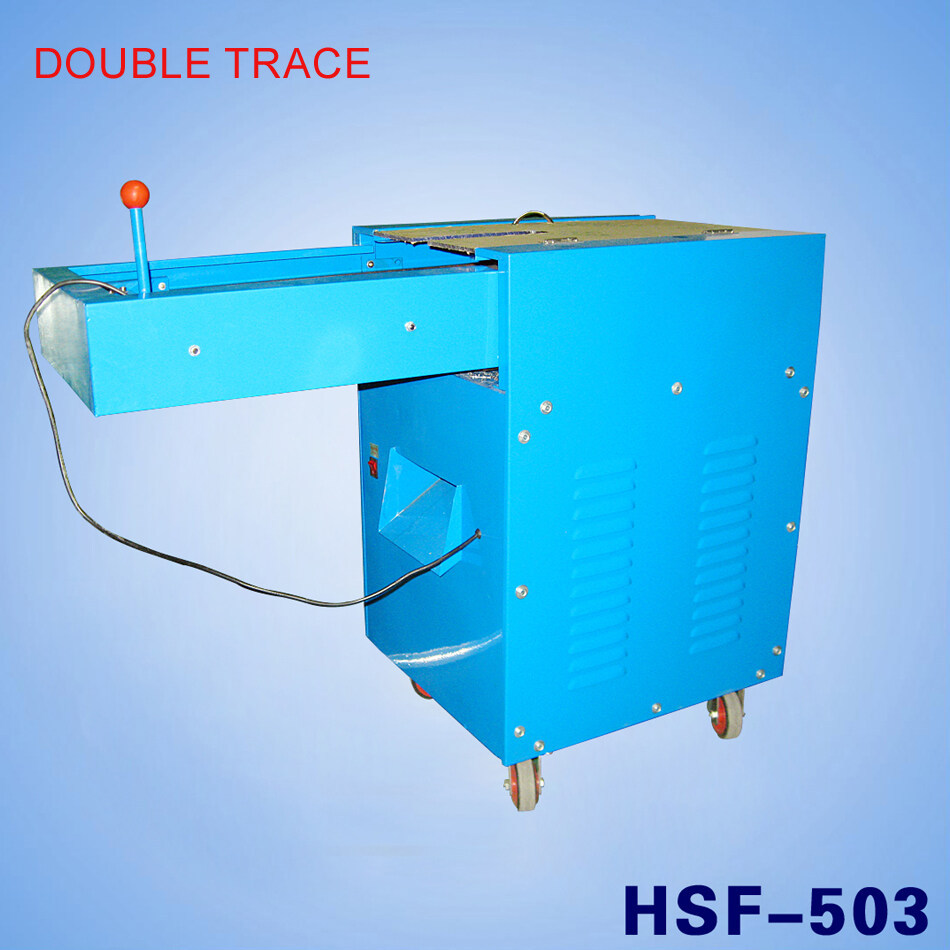

MM00050 HSF-503 Manual Hand Push PCB Board Pin Cutting Machine Twin Knife Type PCB Pin Cutter

Specification:

Power: 110v/220v AC. 60/50Hz
Weight: about 135kg
Using special two-way track, manually push the PC board.
The maximum cut PCB board size: 250mm × 500mm.
The main Tungsten steel Blade are imported NK-200 ,low noise, 4300rpm / min, high precision, high production efficiency
Cut the pcb within 400mm
Blade size: inner diameter 70/outer diameter 200mm or 250mm
HSF-503, this machine is a double-blade machine customized for circuit boards with a width of more than 250MM. Two knife holders are installed on the machine. Use two knives to cut pins.
HSF-502, this is the manual version of HSF-2005, the function is the same, but manual operation is more dangerous and is not recommended. HFS-502 is a single-blade, also called a walking plate type, people have to move the conveyor plate, just the board cutting machine .
PS: The price is just for reference, the final price will depend on the final mold design

$2399.00

Blade:

Double Blades

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design

Attention:

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way

Install instruction/install the blade

1)First, pull the transparent film on the top of the machine, turn the "width-narrow" amplitude modulation handwheel, adjust the track to both sides, unscrew the screw on the top of the cutter head, take out the upper cover, wipe the cutter head against the surface of the blade, and Put the blade flat end up on the cutter head, replace the upper cover, and tighten the screw.
2)Adjust the cutting foot length:
Rotate the "long-short" cutter head lifting wheel next to the machine body and adjust it to the required position (be careful not to let the upper end of the blade touch the bottom of the track).
3)Adjust the rolling track:
According to the width of the produced circuit board, turn the "wide-narrow" amplitude modulation handwheel to adjust the distance between the tracks.
4)Start cutting feet:
Put the circuit board into the entry board of the track, connect the "ON" of the "switch", push the handle to cut the feet, after the handle pushes the bottom, touch the positioning point, return to the original position, then put down the circuit board, push the handle, so Repeat, take out the circuit board from the other end of the track.
