MM00040/MM00041/MM00042 3-10mm/5-10mm/8-18mm HSF-206A Automatic Loose Radial Capacitor Lead Cutting Machine Big Capacitance Pin Machine Cutter

No.MM00040/MM00041/MM00042

Specification:

  • Power: 110v/220v AC. 60/50Hz,250W
  • Size: L1050*W1000*H 1000mm
  • Net Weight: about 160KG
  • Capacity:36000cs/hour, molding speed varied with the Capicitor size
  • Sending materials automatically including electrolytic capacitor (diameter 3-10mm, height not over 16mm), luminous diode (diameter 3-8mm), transistor and part of ceramic capacitor and so on.
  • Other allotypic radial components can use customized feed vibrating plate
  • The maximum processing speed reaches 100-300pcs/min.
  • Do not need to blow in processing.
  • Appropriate for mass production and the best auxiliary equipment for short pin, adopts FL-803S type to finish the operation of cutting pin.

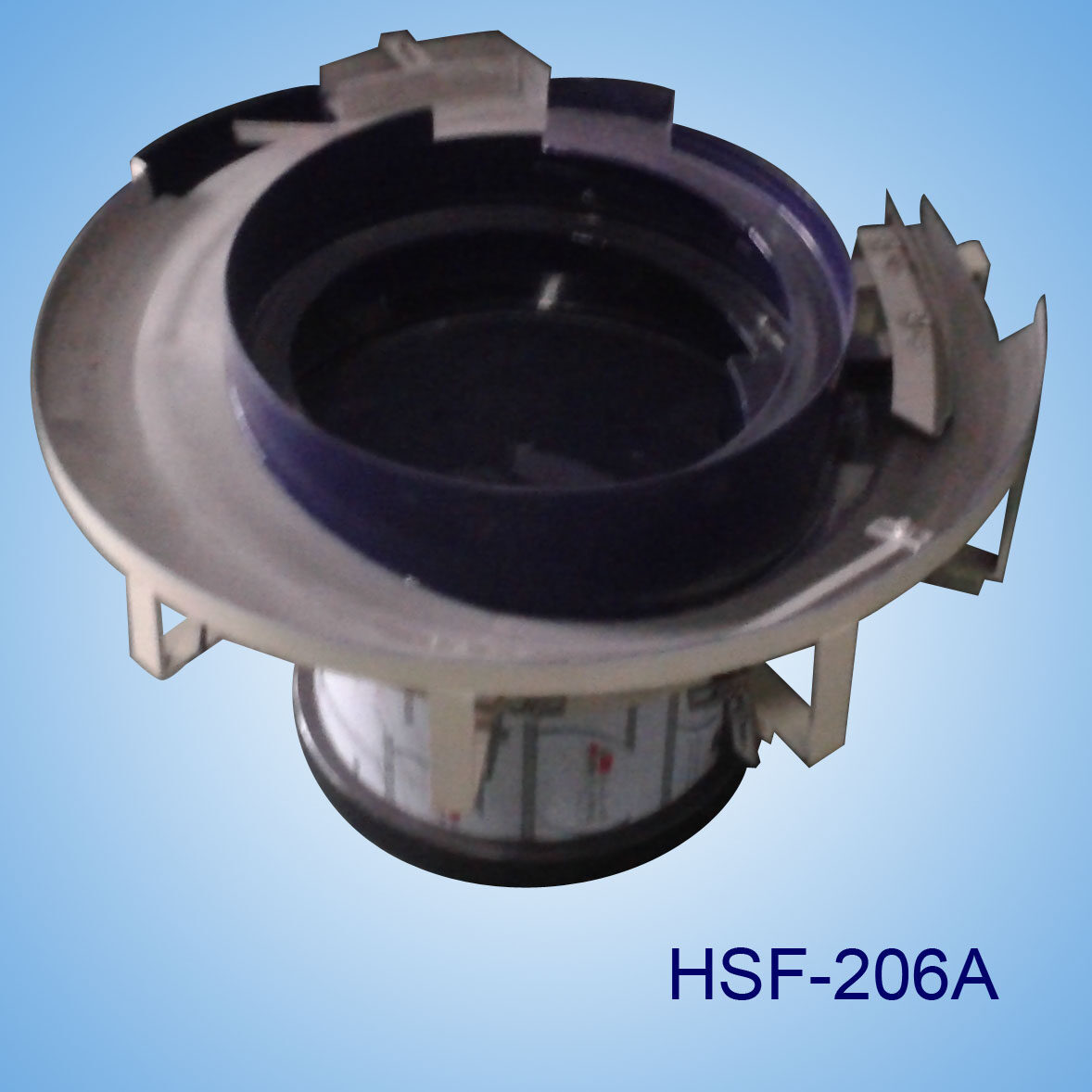

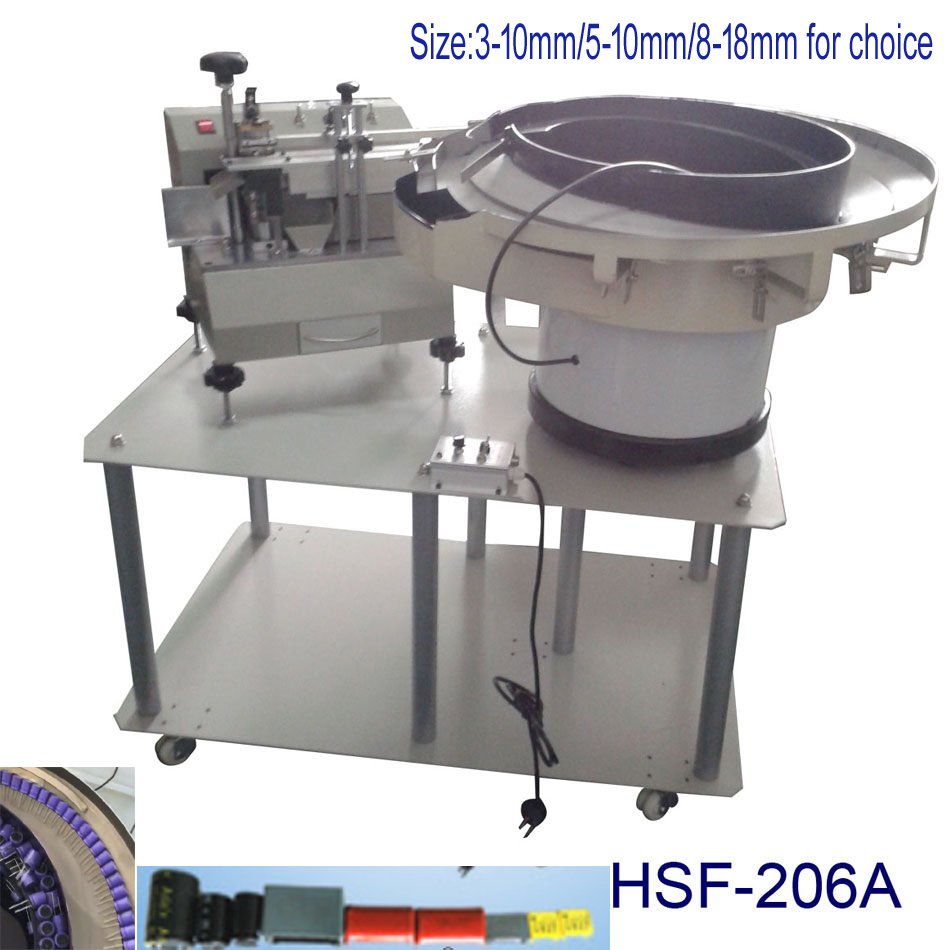

  • This equipment is consist of three parts: cutting machine, vibrating feed plate and bracing trolley
  • Note: If the component size is different, you can share the main machine body and match different vibration plate.
  •  PS: The price is just for reference, the final price will depend on the final mold design
$2499.00
Material Packing:
Loose
Type:
Just cut legs without forming
Working mode:
Automatic bower feeding
Diameter Size:
For 3-10mm
For 5-10mm
For 8-18mm
Machine:
Regular not customize
  • MM00040/MM00041/MM00042 3-10mm/5-10mm/8-18mm HSF-206A Automatic Loose Radial Capacitor Lead Cutting Machine Big Capacitance Pin Machine Cutter
  • MM00040/MM00041/MM00042 3-10mm/5-10mm/8-18mm HSF-206A Automatic Loose Radial Capacitor Lead Cutting Machine Big Capacitance Pin Machine Cutter
  • MM00040/MM00041/MM00042 3-10mm/5-10mm/8-18mm HSF-206A Automatic Loose Radial Capacitor Lead Cutting Machine Big Capacitance Pin Machine Cutter
  • MM00040/MM00041/MM00042 3-10mm/5-10mm/8-18mm HSF-206A Automatic Loose Radial Capacitor Lead Cutting Machine Big Capacitance Pin Machine Cutter

DESCRIPTION

 PS: The price is just for reference, the final price will depend on the final mold design
Attention:

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way



Featues:

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design
4) Note: If the component size is different, you can share the main machine body and match different vibration plate.
