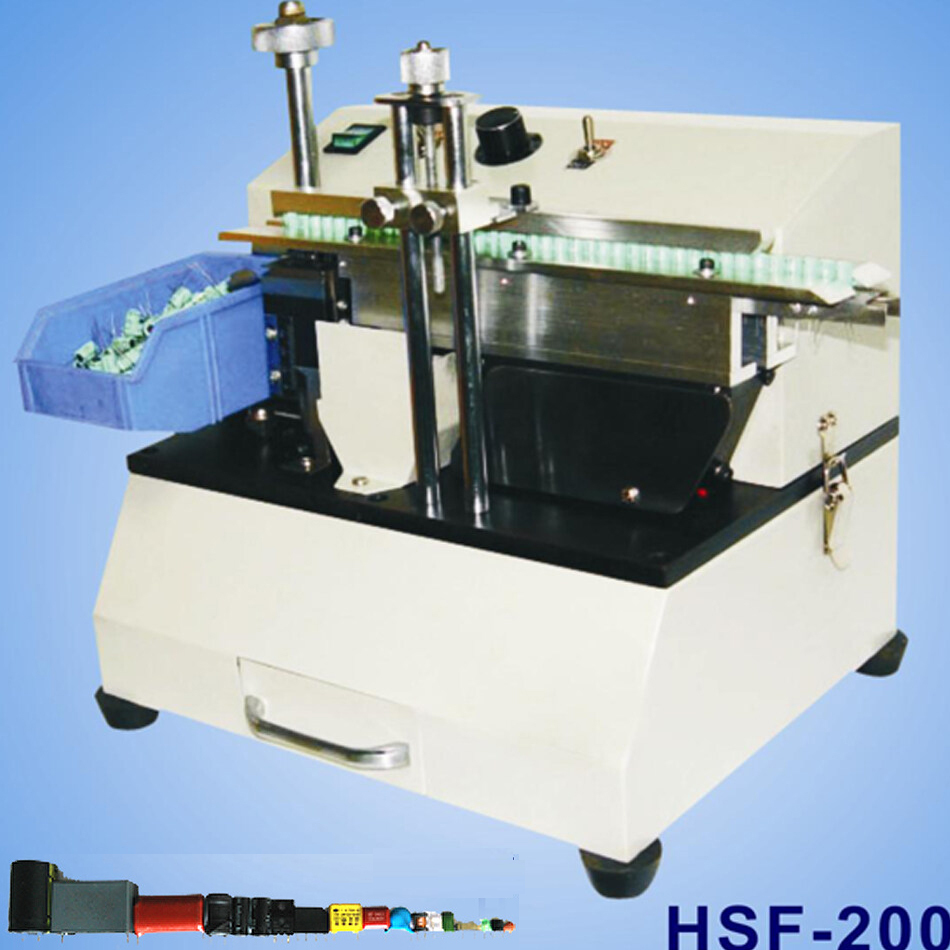

MM00038 HSF-200 Manual Loose Radial Capacitor Lead Cutting Machine Capacitance Shear Pin Machine Cuttter

No.MM00038

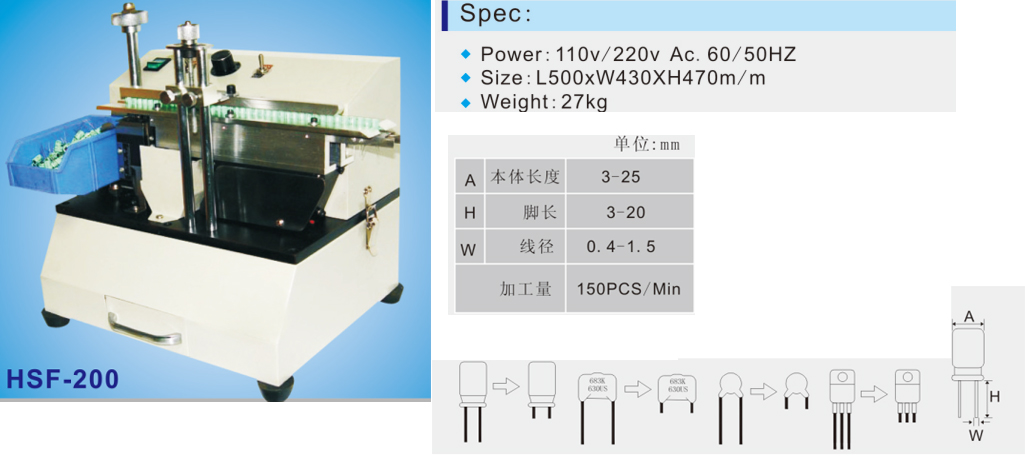

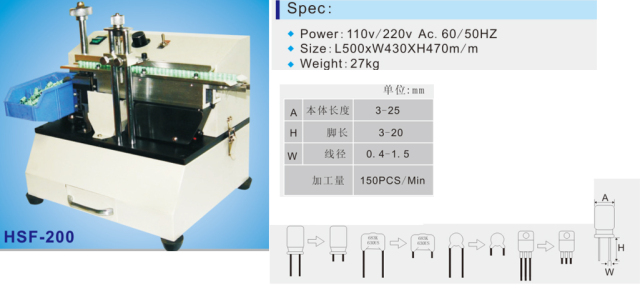

Specification:

  • Power: 110v/220v AC. 60/50Hz,250W
  • L500*W430*H 470mm
  • Net Weight: about 27KG
  • Capacity:5000-7500cs/hour, molding speed varied with the Capicitor size
  • Linear feeder is installed to ensure suitable for all sizes with the adition of automatic bowl feeder. It will become fully automatic
  • Special cutting design can insure easy adjustment and long life of cutting tools.
  • The maximum processing speed reaches 300pcs/min.
  • Light weave count, setting accurate,(part of optional accessories: counter). Easy maintenance and operate.
  • The cutting leg height can be adjusted within 3-20mm,
  • Light weave count, setting accurate,(part of optional accessories: counter). Easy maintenance and operate.
  • All radial components can be used. Manual material feeding is required. The machine automatically cuts the legs, but it can only cut 2 straight legs of the same length without shaping function.
  •  PS: The price is just for reference, the final price will depend on the final mold design
$799.00
Material Packing:
Loose
Type:
Just cut legs without forming
Working mode:
Maual feeding, Automatic cutting legs
Diameter Size:
For 3-10mm
Machine:
Regular not customize
  • MM00038 HSF-200 Manual Loose Radial Capacitor Lead Cutting Machine Capacitance Shear Pin Machine Cuttter
  • MM00038 HSF-200 Manual Loose Radial Capacitor Lead Cutting Machine Capacitance Shear Pin Machine Cuttter
  • MM00038 HSF-200 Manual Loose Radial Capacitor Lead Cutting Machine Capacitance Shear Pin Machine Cuttter
  • MM00038 HSF-200 Manual Loose Radial Capacitor Lead Cutting Machine Capacitance Shear Pin Machine Cuttter

DESCRIPTION

 PS: The price is just for reference, the final price will depend on the final mold design
Attention:

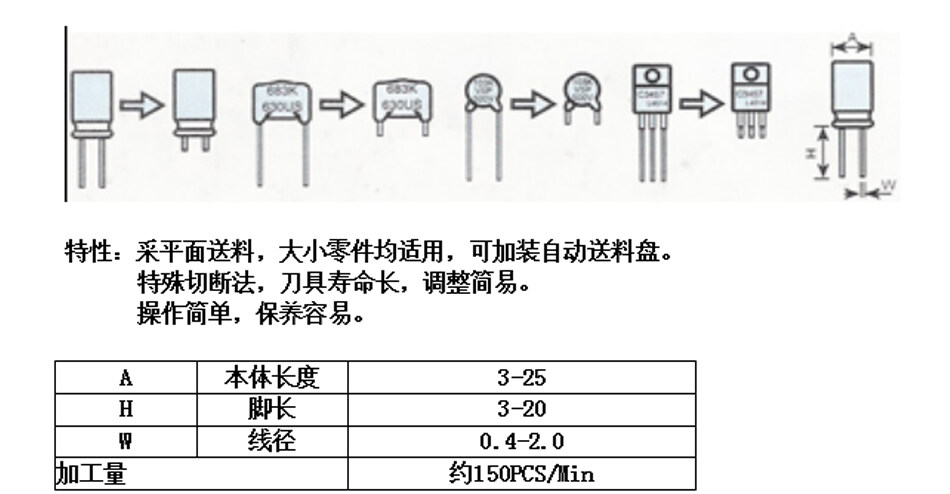

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way
