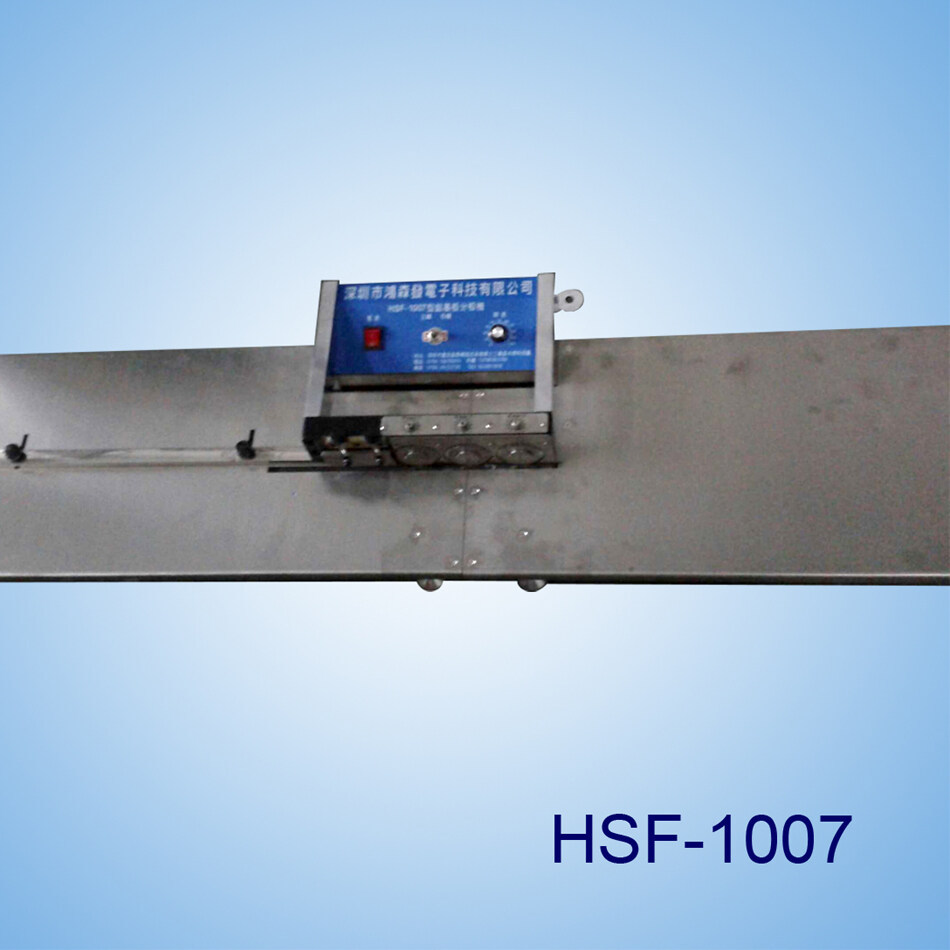

MM00048 HSF-1007 Multi-Cutters V cut LED PCB separator V-CUT PCB Depaneling Knife Type Cutting Machine

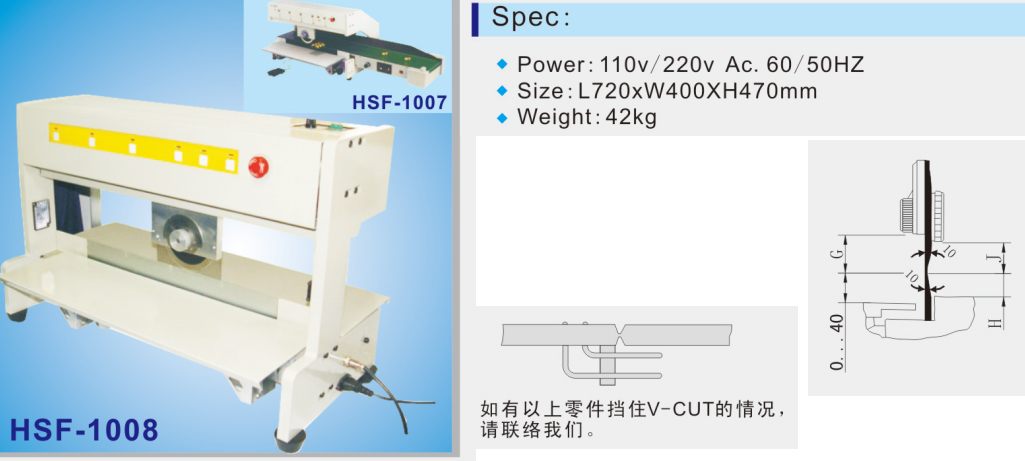

Specification:

• Power: 110v/220v AC. 60/50Hz
• Size: L720*W400*H 470mm
• Weight: about 42kg
• Applicable substrates: aluminum substrates, FR series substrates and common glass fiber substrates, best for FR4.
• There is no restriction on PCB length, but individual PCB Length shall be no less than 800mm.
• Cutter diameter: 100mm, and cutting rate: 80-300mm/s (adjustable).
• Using a unique cutting method, the circuit board is cut by six blades, and the upper and lower two pieces form a group to form a cutting unit. They are A, B, C, and three groups. The entire cutting process is divided into three stages. The A blade cuts 40% of the circuit board first, and then the B blade runs through the groove cut by the A blade again to complete 40% of the cutting volume, and the C blade cuts 20% And trimming, because the amount of cut each time is small, the stress generated during the cutting process is reduced by more than 80% compared with the traditional one-time cutting method. The edge of the divided circuit board is smooth and smooth, and the board surface is very flat, not twisted or warped . It is the better one on the market to ensure that the aluminum plate remains unchanged after cutting Shaped machine
• Due to multiple cuts, the cutting process is very stable, which greatly improves the positioning ability of the V-CUT slot. Even if the V-CUT slot is very shallow, the circuit board will not jump out of the guide knife. Situation to avoid bad
• Due to the low cutting force of the blade and the use of high-speed steel imported from Sweden, the durability of the blade is greatly improved, and the blade life can reach more than one year when the aluminum substrate is divided
• All cutting blades are calibrated with a dual-frequency laser interferometer to ensure that the rear knife can accurately continue cutting in the groove cut by the front knife. The tool tip runout is not more than 0.02mm. Guaranteed cutting quality.
• Machine size: 540mm(lenght)*280mm(width)*240mm(height)
• This machine is suitable for aluminum substrates, light strips and fiberglass boards with a length of more than 800MM. The length is unlimited. The machine has a total length of 2.4M. There are 3 groups of 6 knives in total.
• PS: The price is just for reference, the final price will depend on the final mold design
