MM00033 209 Model Automatic Belt Type Radial Capacitor Lead Cutting Machine Cylindrical Capacitor Shaping Machine

No.MM00033

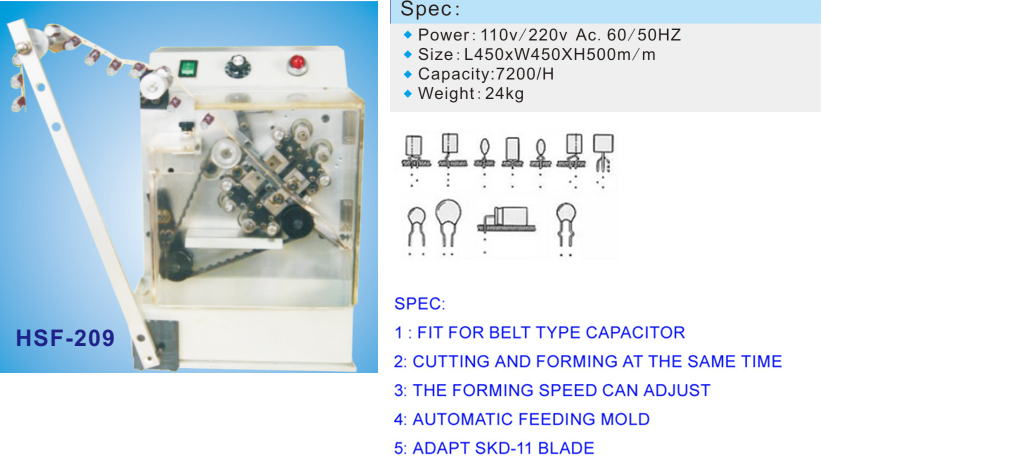

Specification:

  • Power: 110v/220v AC. 60/50Hz
  • Size: L450*W450*H 500mm
  • Net Weight: about 24KG
  • Capacity: 7200cs/hour, molding speed varied with the Capicitor size
  • Work mode: Automatic processing
  • Pefect for : Belt type capacitor and other radial parts molding, cut the foot
  • Suitable for Resistor parts molding/ cut foot at same time, or just molding or just cutting foot

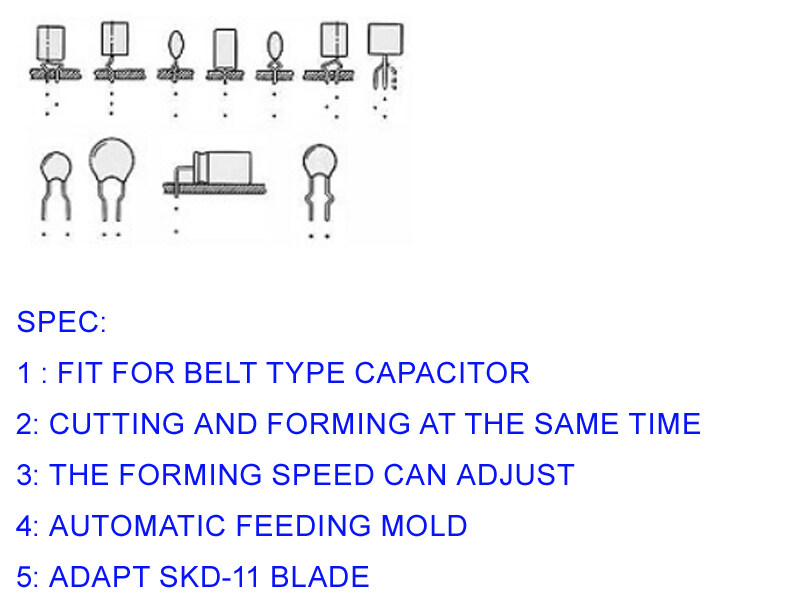

  • Forming shape: 90degrees, incurvature, excurvature, front and rear curvature, K-shape, long and short pin, and other shapes specially customized
  • Hole centere distance: 12.5mm or 12.7mm
  • Modling type : K  modling
  • The mold and cutter respectively using SKD-11 and DC-53 material, Long life, easy maintenance.  Heat treatment for more than 60 degrees, durable
  • Cutting and forming at same time,  Strong processing ability of cutting legs and bending;the foot long and span can be adjusted.
  • One molding mold just work for one molding specification, if more molding types, need customzie more moling mold
  •  PS: The price is just for reference, the final price will depend on the final mold design
$2199.00
Material Packing:
Taped
Type:
F shape
Machine:
Regular not customize
  • MM00033 209 Model Automatic Belt Type Radial Capacitor Lead Cutting Machine Cylindrical Capacitor Shaping Machine
  • MM00033 209 Model Automatic Belt Type Radial Capacitor Lead Cutting Machine Cylindrical Capacitor Shaping Machine
  • MM00033 209 Model Automatic Belt Type Radial Capacitor Lead Cutting Machine Cylindrical Capacitor Shaping Machine
  • MM00033 209 Model Automatic Belt Type Radial Capacitor Lead Cutting Machine Cylindrical Capacitor Shaping Machine

DESCRIPTION

 PS: The price is just for reference, the final price will depend on the final mold design
Attention:


1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way



Featues:

  • It is suitable for the forming of Belt Type capacitor and other axial parts, and other electronic compents of similar shape
  • Its speed can be adjusted steplessly
  • It is easy to operate and maintain
  • Molds can be made on upon the customers requirement for size. It is easy to change moulds.
  • Vibration dish forming bulkly spares can be installed upon requirments
  • Application Scope: Belt Type capacitor processing and other material K Molding
