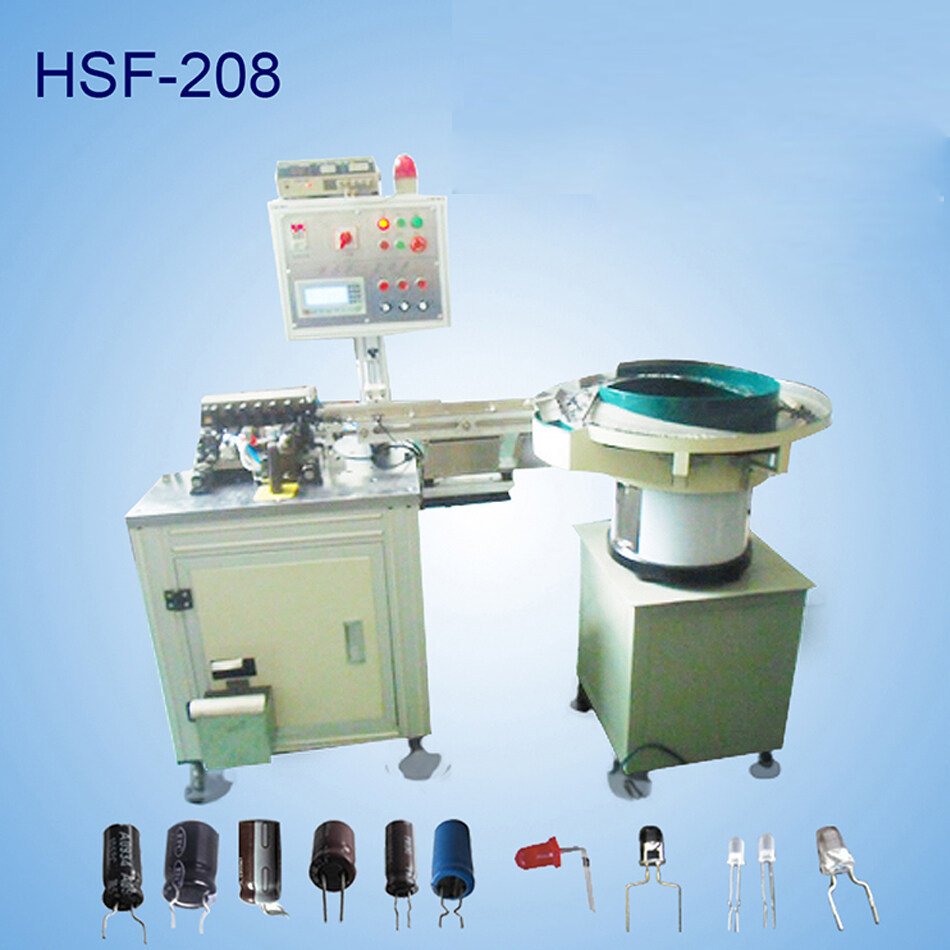

MM00031/MM00032 208 Model Bulk Packing Automatic Capacitor Lead Cutting Machine Radial Lead Forming Bending 90 Degree Machine

Name: MM00031/MM00032 208 Model Bulk Packing Automatic Capacitor Lead Cutting Machine Radial Lead Forming Bending 90 Degree Machine
Brand: MIGALINK | Production line
SKU: MM00031/MM00032
Price: 15999.00 USD
Availability: InStock
Rating: 5 (1 reviews)

No.MM00031/MM00032

Specification:

Power: 110v/220v AC. 60/50Hz, 250W
Size: L1500*W650*H 1200mm
Net Weight: about 350KG
Capacity: 4000cs/hour, molding speed varied with the Capicitor size
Work mode: Autotmatic processing, it can work for LED and Capicitor, but can not share the same machine, need to purchase separate machine
Capacitor body diameter:6-12MM CAN SHARE THE SAME MOLD, 13-17MM SHARE THESAME MOLD,18- 22MM SHARE THESAME MOLD
Pefect for : Loose Bulk capacitor and other radial parts molding, cut the foot
Suitable for Resistor parts molding, cut foot,
Forming shape: straight line, inner curvature, outer curvature, 90 degrees, front and rear curvature, two-way curvature, long and short pin, and other shapes all can specially customized.
Modling type : K modling
The mold and cutter respectively using SKD-11 and DC-53 material, Long life, easy maintenance. Heat treatment for more than 60 degrees, durable
Cutting and forming at same time, Strong processing ability of cutting legs and bending;the foot long and span can be adjusted.
Special function: It can detect polarity and pick up the waste, and do not send the waste for processing
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold
PS: The price is just for reference, the final price will depend on the final mold design

$15999.00

Material Packing:

Loose

Type:

F shape

U shape

Use for:

For Led

For Capacitor

Function:

With Polarity Detection, can pick up the waste and do not send for processing

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design
Attention:

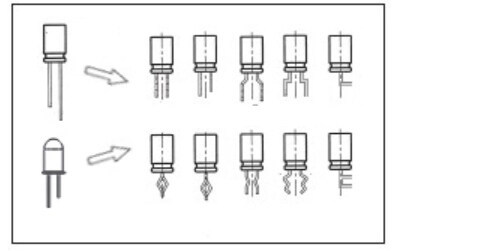

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way

Featues:

It is suitable for the forming of bulk packing capacitor and other axial parts, and other electronic compents of similar shape
Its speed can be adjusted steplessly
It is easy to operate and maintain
Molds can be made on upon the customers requirement for size. It is easy to change moulds.
Vibration dish forming bulkly spares can be installed upon requirments
Application Scope: Bulk capacitor processing and other material K Molding
