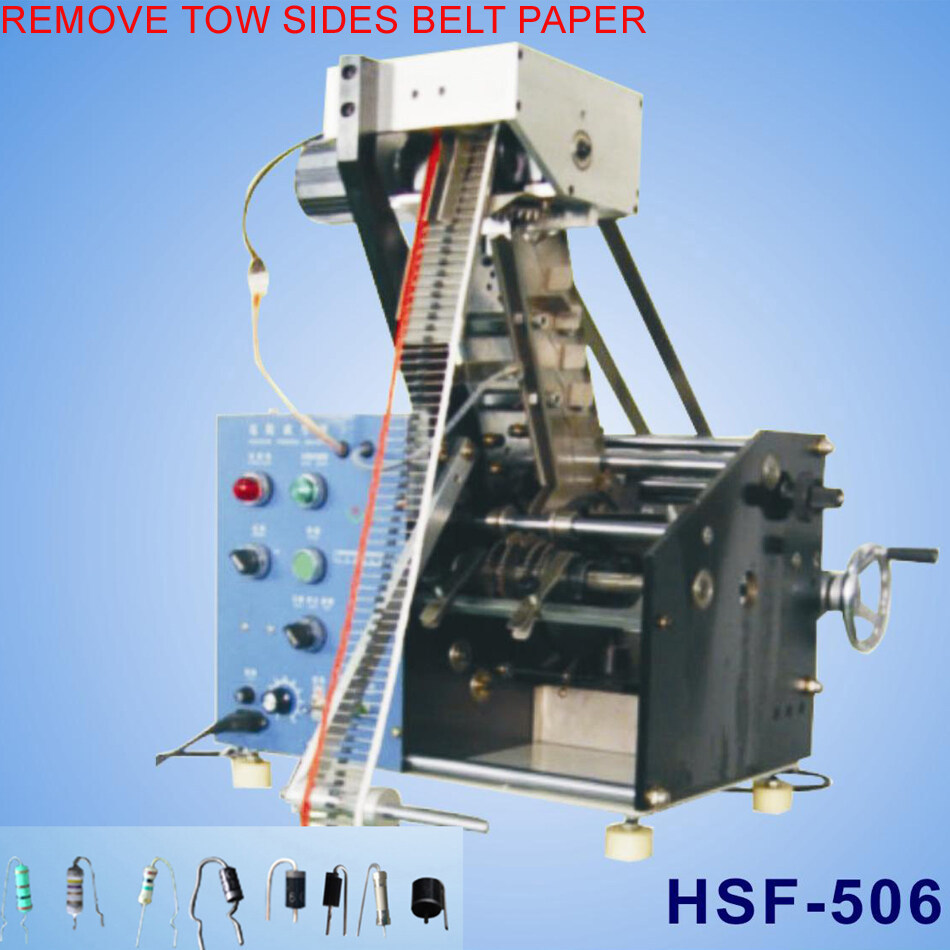

MM00022 506 Belt Taped Packing Resistor Cutting Forming Machine Automatic Diode Axial Lead Cutting Forming Machine Big Size 15mm Two Sides Untape

No.MM00022

Specification:

Power: 110v/220v AC. 60/50Hz
Weight: about 150KG
Capacity: 3000-3600pcs/hour, molding speed varied with the Transistor size
Work mode: Automaticl Belt Taped processing
Pefect for : Bled Taped resistance, diode and other axial parts molding, cut the foot
Suitable for Resistor parts molding, cut foot, Can K molding,When the big resistor body length is over 15mm, the resitor leg length is not enough, then need this machine to disassemble two sides belt
Modling type : F modling
The mold and cutter respectively using SKD-11 and DC-53 material, Long life, easy maintenance. Heat treatment for more than 60 degrees, durable
Cutting and forming at same time, Strong processing ability of cutting legs and bending;the foot long and span can be adjusted.
Mainly for belt packing regsistor and diodes and other axial parts molding cutting process.
PS: The price is just for reference, the final price will depend on the final mold design
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold.

$5599.00

Material Packing:

Taped

Type:

F shape with k-forming with Two-sides Untape

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design

Attention:

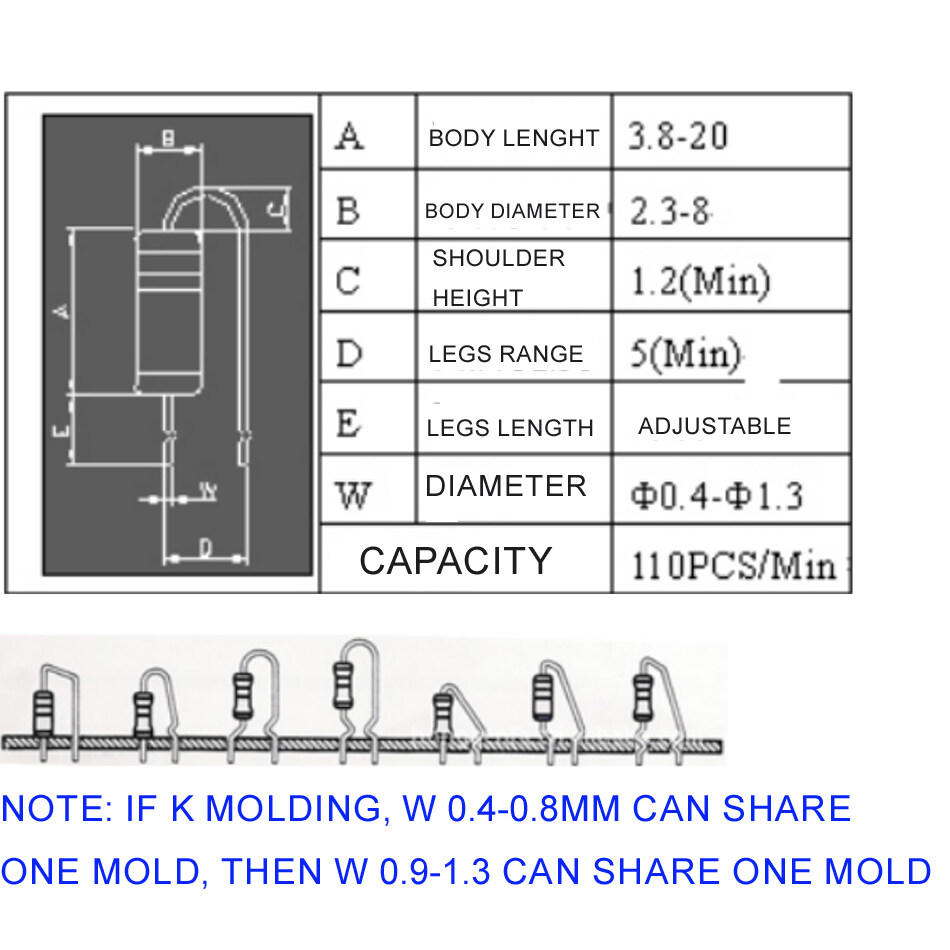

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way.

Featues:

It is suitable for the forming of belt packing resistor, diodes and other axial parts, and other electronic compents of similar shape
Its speed can be adjusted steplessly
It is easy to operate and maintain
Molds can be made on upon the customers requirement for size. It is easy to change moulds.
Vibration dish forming bulkly spares can be installed upon requirments
Application Scope: Blet resistor processing and other material F Molding
