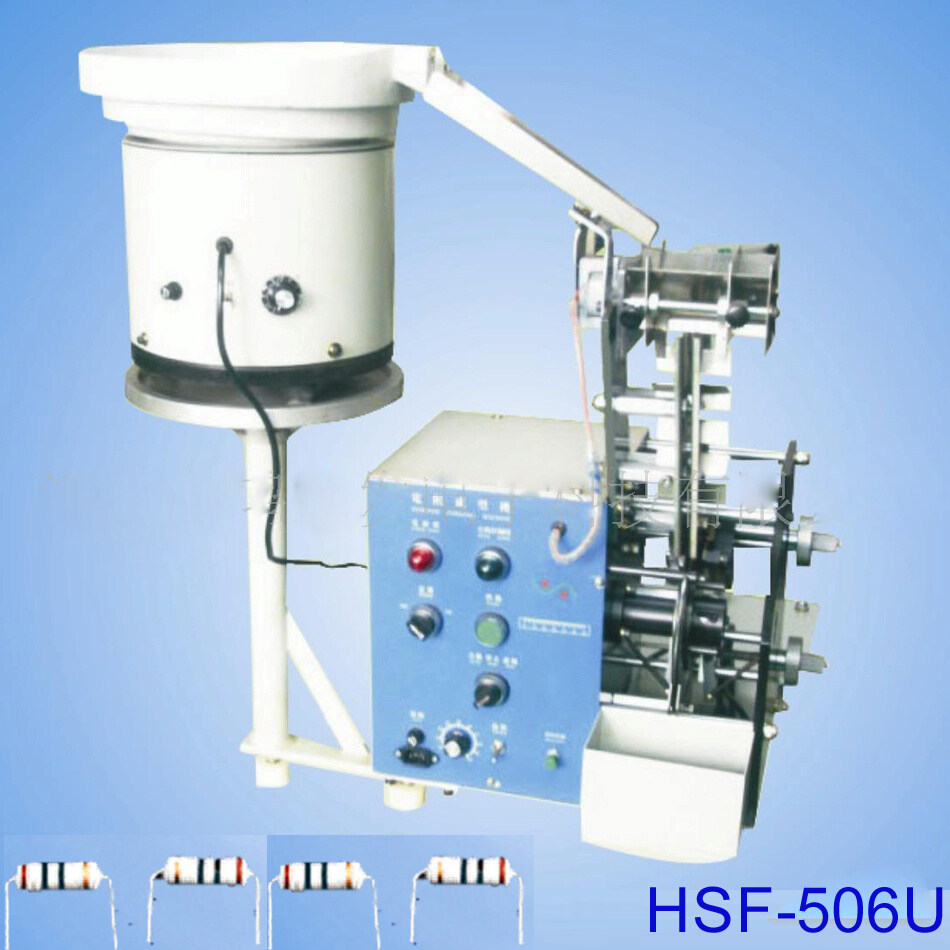

MM00020 506U Bulk Packing Resistor Cutting Forming Machine Automatic Loose diode axial lead cutting forming machine

No.MM00020

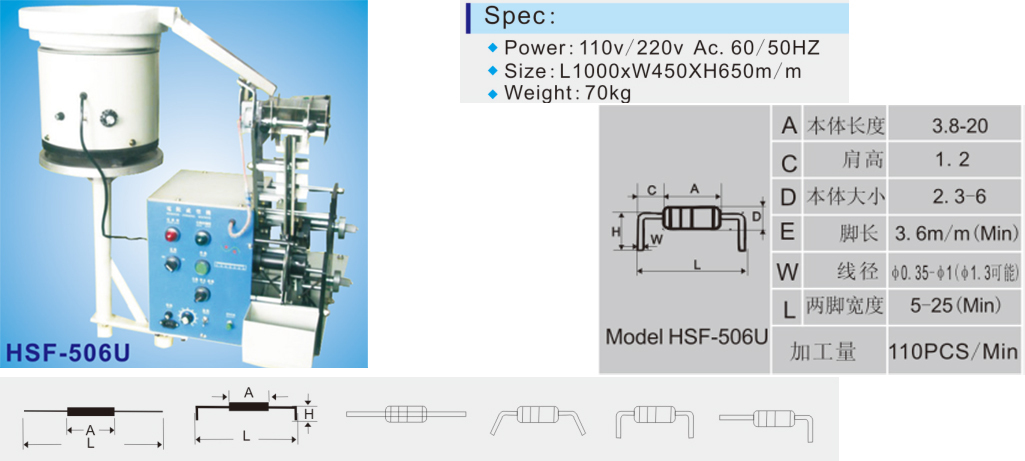

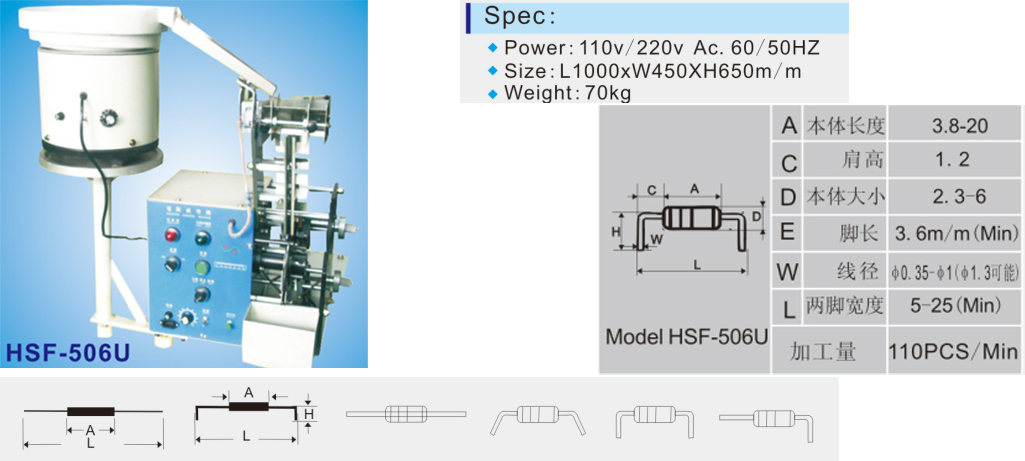

Specification:

Power: 110v/220v AC. 60/50Hz
Size: L1000*W450*H 650mm
Net Weight: about 70KG
Capacity: 250-260pcs/min, molding speed varied with the Transistor size
Work mode: Automaticl bulk processing
Pefect for : bulk resistance, diode and other axial parts molding, cut the foot
Suitable for Resistor parts simply molding, cut foot, can not k-forming
Modling type : U modling
The mold and cutter respectively using SKD-11 and DC-53 material, Long life, easy maintenance. Heat treatment for more than 60 degrees, durable
Cutting and forming at same time, Strong processing ability of cutting legs and bending;the foot long and span can be adjusted.
Mainly for bulk packing regsistor and diodes and other axial parts molding cutting process. Adopt vibration dish feeding mode
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold.
PS: The price is just for reference, the final price will depend on the final mold design

$3799.00

Material Packing:

Loose

Type:

U shape without K-forming

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design
Attention:

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way

Featues:

It is suitable for the forming of bulk packing resistor, diodes and other axial parts, and other electronic compents of similar shape
Its speed can be adjusted steplessly
It is easy to operate and maintain
Molds can be made on upon the customers requirement for size. It is easy to change moulds.
Vibration dish forming bulkly spares can be installed upon requirments

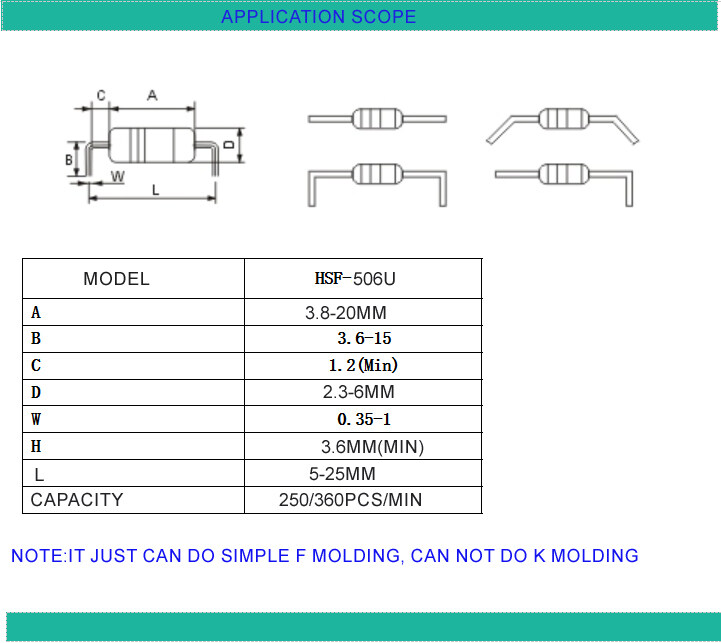

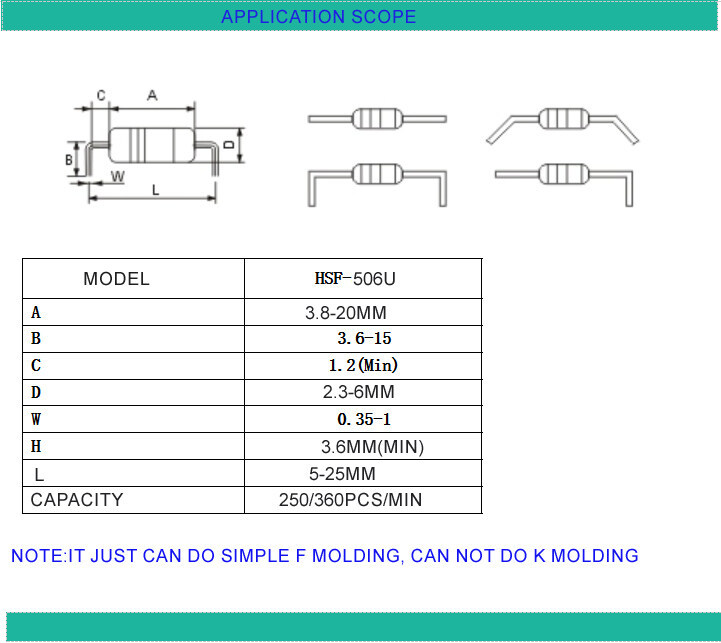

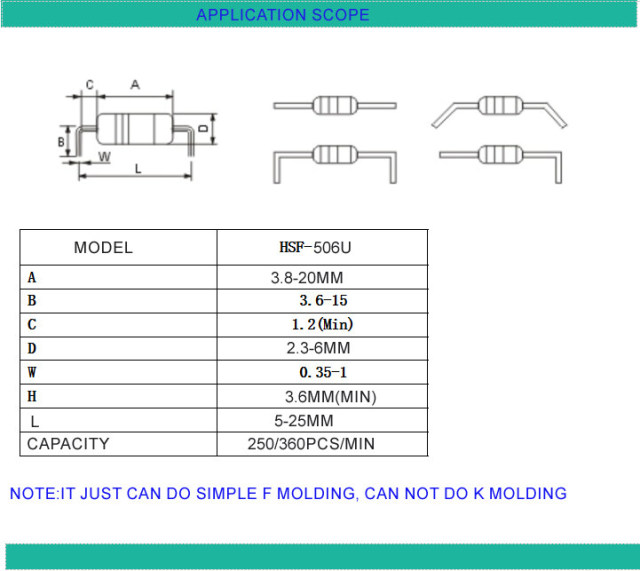

Application Scope: Bulk resistor processing and other material simple U Molding.
