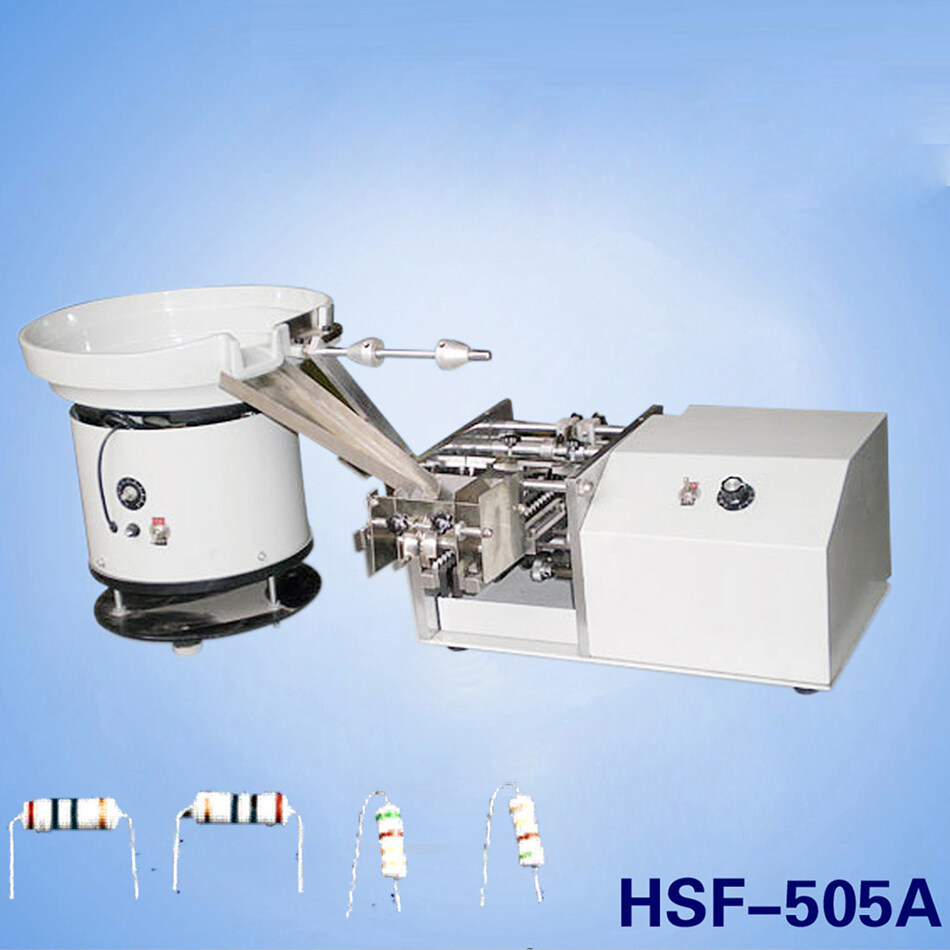

MM00018/MM00019 505A Bulk Belt Packing Resistor Cutting Forming Machine U or F shape Axial Resistor Lead Forming Machine

No.MM00018/MM00019

Specification:

Power: 110v/220v AC. 60/50Hz
Size: L950*W530*H 420mm
Net Weight: about 50KG
Capacity: Capacity of production can reach up to 60000pcs/h(Taped ),5000pcs/h (Loose), molding speed varied with the Transistor size
Work mode: Manual bulk processing
Pefect for : bulk, belt resistance, diode and other axial parts molding, cut the foot
Suitable for Resistor parts simply molding, cut foot, can not k-forming
Modling type : U or F modling
The mold and cutter respectively using SKD-11 and DC-53 material, Long life, easy maintenance. Heat treatment for more than 60 degrees, durable
Cutting and forming at same time, Strong processing ability of cutting legs and bending;the foot long and span can be adjusted.
When the diode forming F type, it need to use Tape feeding or manual feeding, not use the vibration disc feeding, in order to ensure the requirements of the polarity of the molding.
Mainly for Belt-taped regsistor and diodes and other axial parts molding cutting process. Adopt tape and vibration dish feeding mode
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold.
PS: The price is just for reference, the final price will depend on the final mold design

$959.00

Material Packing:

Loose and taped

Type:

U shape

F shape

Machine:

Regular not customize

GET A QUOTE

Add to Quote List View Quote List

DESCRIPTION

PS: The price is just for reference, the final price will depend on the final mold design
Attention:

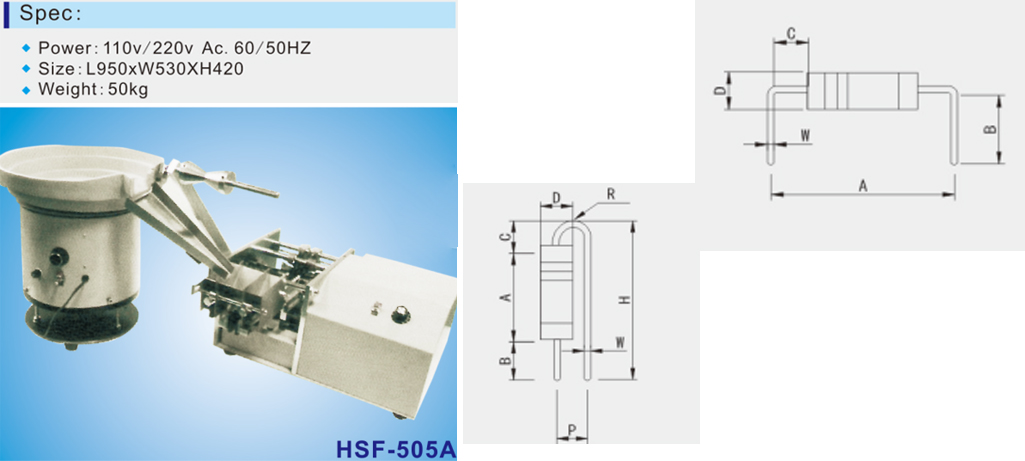

1)The below foming mode picture is just for reference.

2) The specific foming mould will be made based on the requested molding design

3) The final machine price depend on the specific confirmed molding design

4) The listed sale price doed not include shipping cost and tax, due to shipping cost sharply varies with destination country and packing way

Featues:

It is suitable for the forming of bulk-Belt packing resistor, diodes and other axial parts, and other electronic compents of similar shape
Its speed can be adjusted steplessly
It is easy to operate and maintain
Molds can be made on upon the customers requirement for size. It is easy to change moulds.
Vibration dish forming bulkly spares can be installed upon requirments

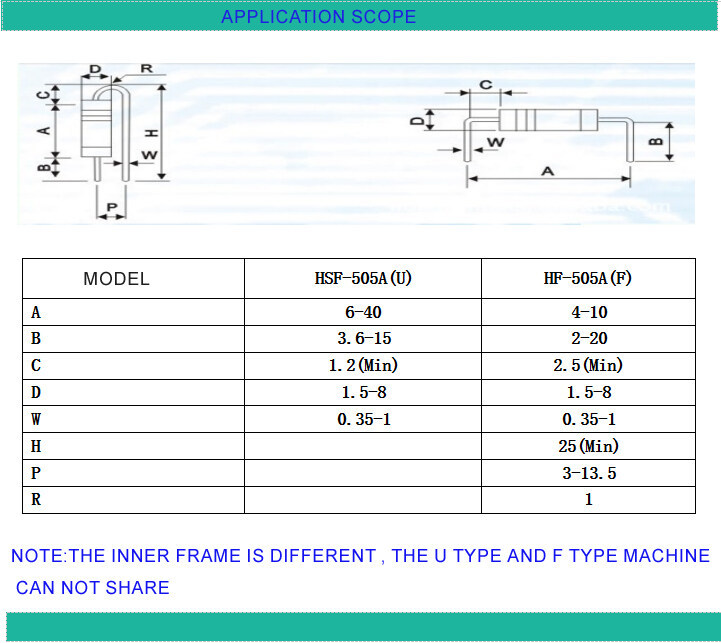

Application Scope: Bulk-Belt tape resistor processing and other material simple U OR F Molding
