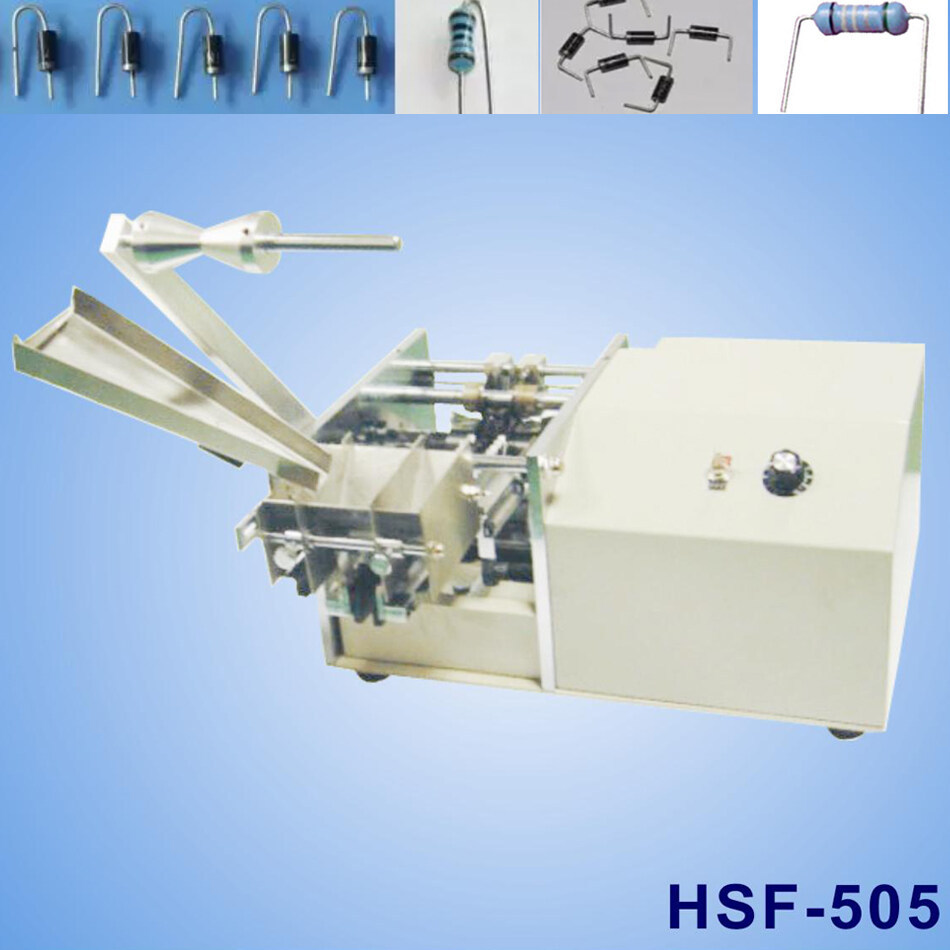

MM00016/MM00017 505 Model Manual Bulk Packing Resistor Cutting Forming Machine U or F shape Belt Taped Resistor Molding Machine

No.MM00016/MM00017

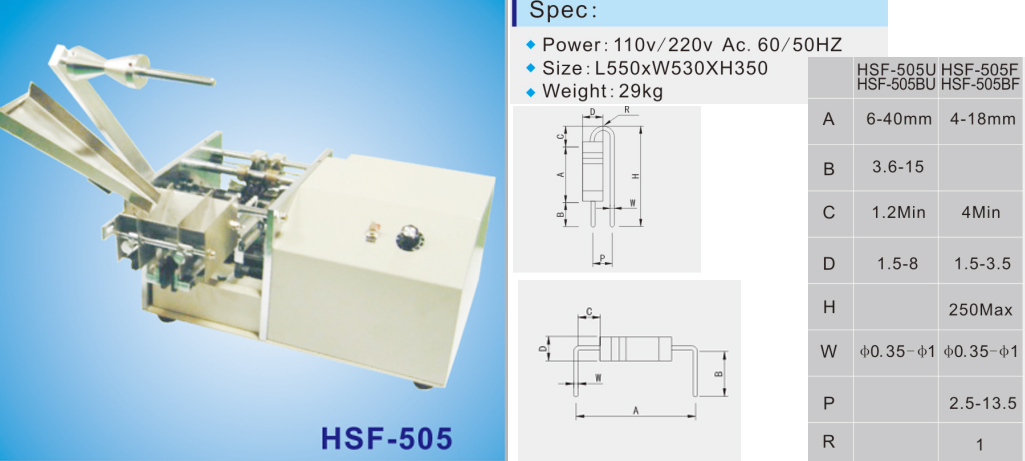

Specification:

Power: 110v/220v AC. 60/50Hz
Size: L550*W530*H 350mm
Weight: about 29KG
Capacity:40000-60000cs/H, molding speed varied with the Transistor size
Work mode: Manual bulk processing
Pefect for : Bulk packing ResistorCutting Forming
Suitable for Resistor parts simply molding, cut foot, can not k-forming
Modling type : U or F modling
Cutting and forming at same time, shaped foot length and span can be adjusted, strong processing ability.
Stepless variable speed motor, small noise. Easy adjustment and operation.

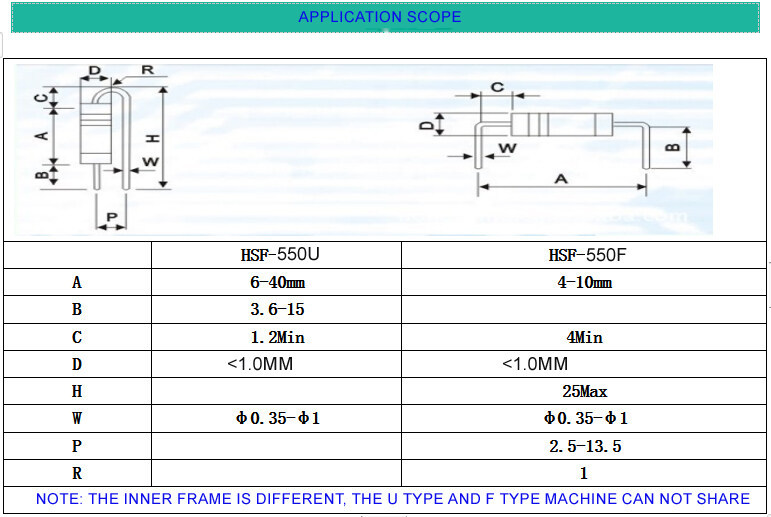

Divided into type U (horizontal type), type F (vertical) and type S (Specifically forming horizontal parts of small span).
Mainly for taped regsistor and diodes and other axial parts molding cutting process. Adopt automatic tape feeding mode
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold
PS: The price is just for reference, the final price will depend on the final mold design
