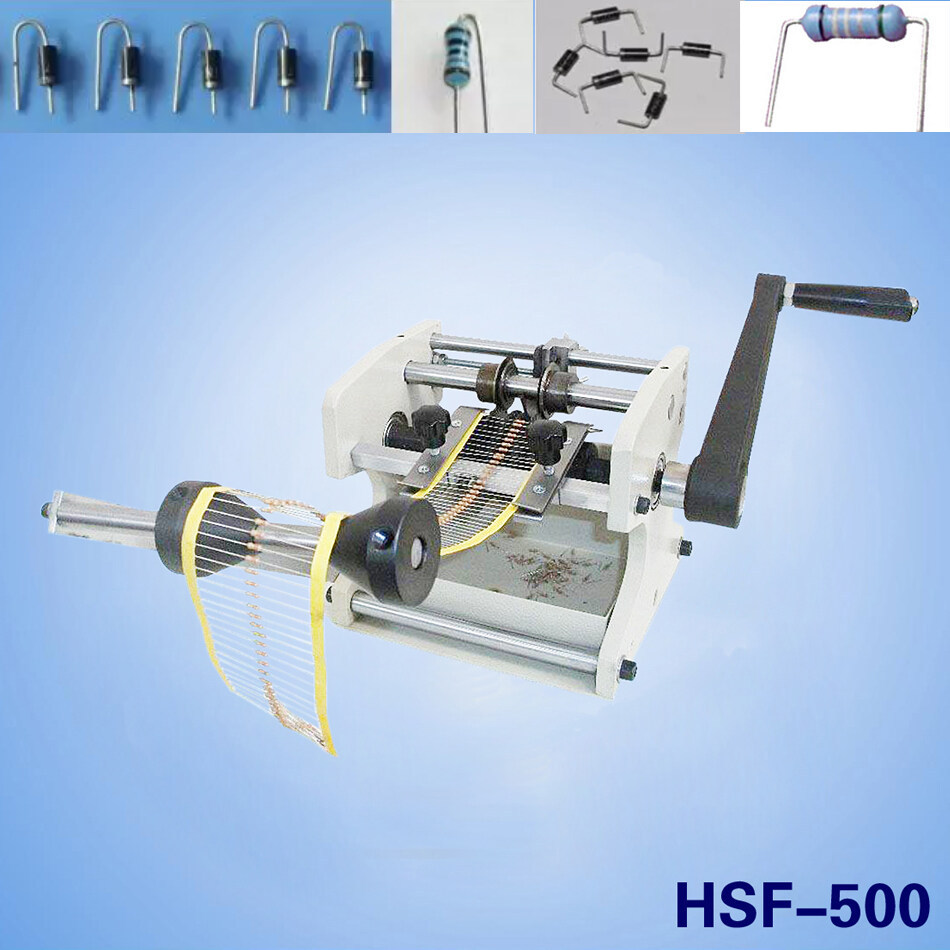

MM00014/MM00015 500 Model Manual Belt Taped Resistor Cutting Forming Machine U or F shape Belt Taped Resistor Molding Machine

No.MM00014/MM00015

Specification:

Power: 110v/220v AC. 60/50Hz
Weight: about 22KG
Capacity:40000-60000cs/H, molding speed varied with the Transistor size
Work mode: Manual taped processing
Pefect for : Belt Taped ResistorCutting Forming
Suitable for Resistor parts simply molding, cut foot, can not k-forming
Modling type : U or F modling
Cutting and forming at same time, shaped foot length and span can be adjusted, strong processing ability.
Stepless variable speed motor, small noise. Easy adjustment and operation.

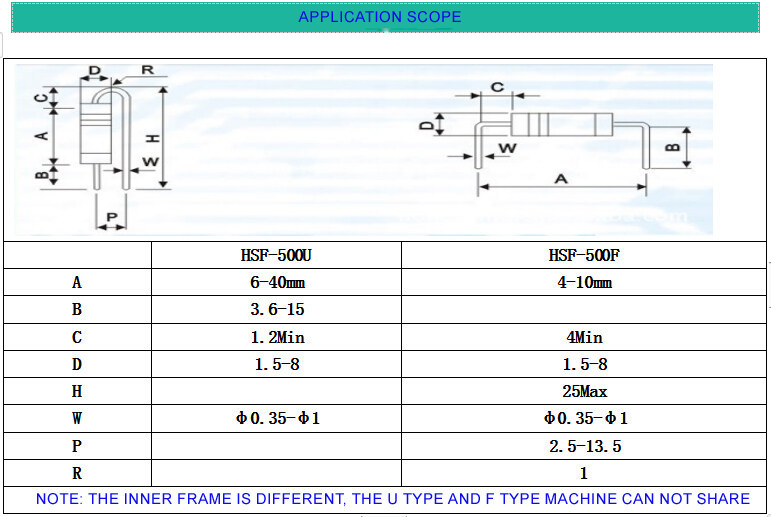

Divided into type U (horizontal type), type F (vertical) and type S (Specifically forming horizontal parts of small span).
Mainly for taped regsistor and diodes and other axial parts molding cutting process. Adopt automatic tape feeding mode
One molding mold just work for one molding specification, if more molding types, need customzie more moling mold
PS: The price is just for reference, the final price will depend on the final mold design
